MAKIO CORE
COMPATIBILITY
MAKIO CORE · KEMPER PROFILER
MAKIO Core uses one unified firmware for KEMPER PROFILER.

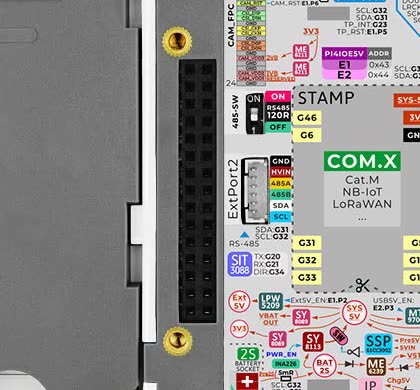

M-BUS PIN MAP
Read the Tab5 M-Bus pin assignments
Select Footswitch 1–8, Hub · DC, or I²C · caution to show each Core reference assignment on the Tab5 rear M-Bus header.
M-BUS · 2×15FS1 G2, FS2 G3, FS3 G4, FS4 G45, FS5 G47, FS6 G48, FS7 G18, FS8 G19, HUB IRQ G16, HUB RX G7, HUB TX G6, DC SENSE G51, I2C SDA G31, I2C SCL G32.
FIRMWARE
MAKIO CORE FIRMWARE
An official MAKIO Core release is not available yet.
